The Mercedes-Benz E-Class All Terrain 4x4 is an absolute monster

Beast personified
by | Aug 7, 2017


What is it?

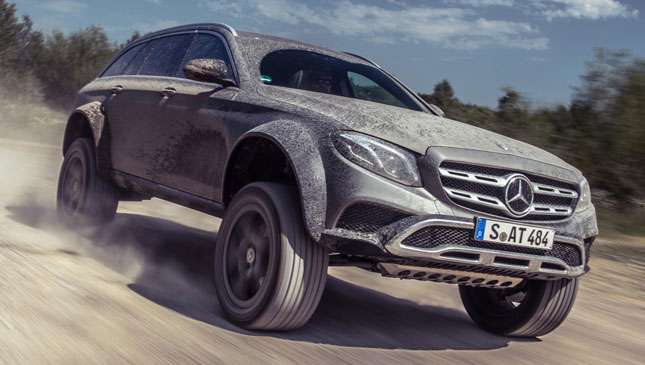

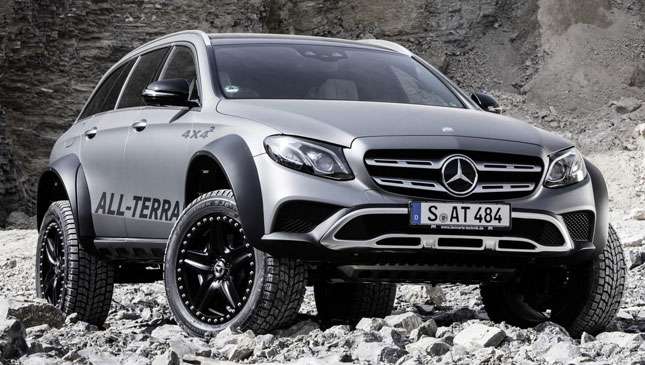

It’s a Mercedes-Benz E-Class All-Terrain given the almost-familiar ‘4x4²’ treatment. Which, in case you didn’t notice the G-Wagen 4x4², means portal axles and more stance than is comfortable when parking.

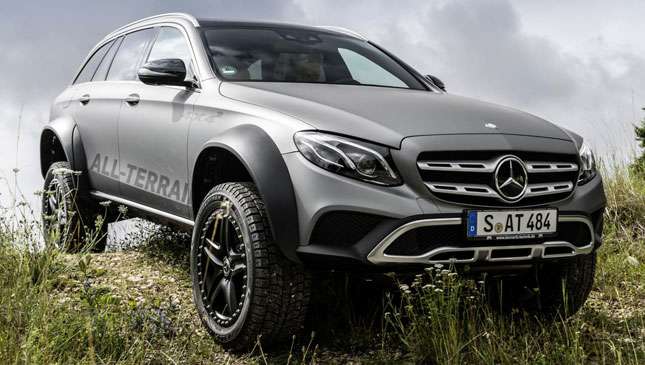

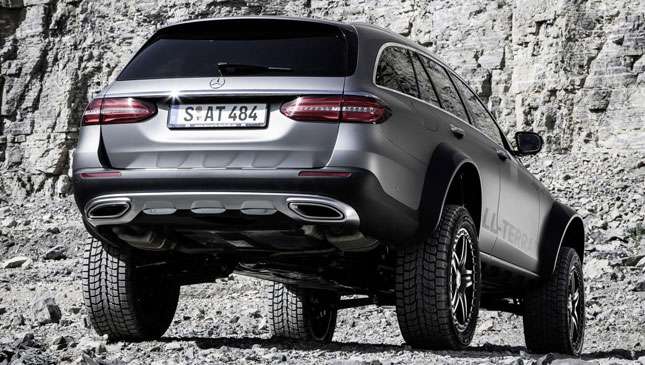

The brainchild of Merc engineer and off-road enthusiast Jürgen Eberle, the giant E-AT² (I just made up that acronym, but it sounds like a Star Wars droid, so I’m keeping it), is basically what it looks like: an E400 E-Class All-Terrain that’s had its suspension redesigned to take a set of portals. At 420mm, the E-AT² has a fair bit more clearance than the standard All-Terrain (160mm), and isn’t far off the wading depth of an actual G-wagen (500mm plays 600).

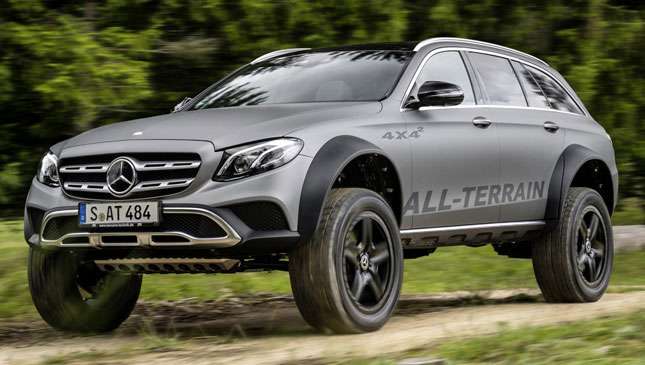

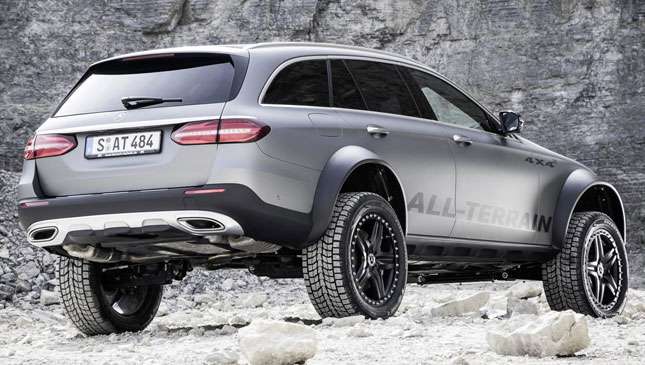

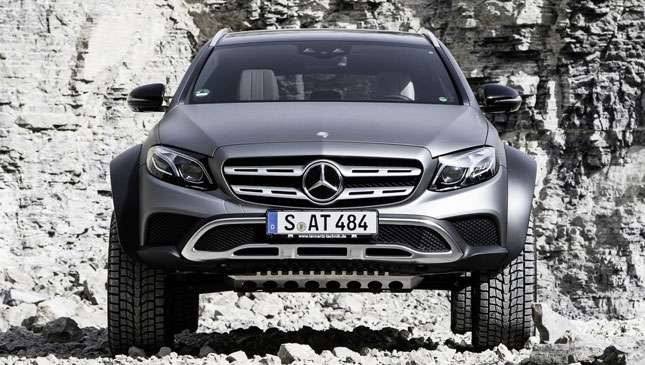

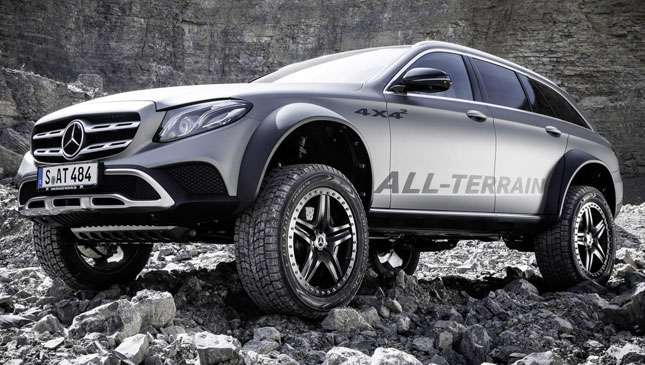

The tracks are wider—the car has 200mm more girth than a standard car—and covered by 3D-printed arches, originally manufactured in three sections and then formed up together. Wheels are nicked from the R-Class SUV… thing… and shod with 285/50/R20s, which means that when coupled with the All-Terrain’s air suspension, you get a seriously jacked up semi-monster.

Continue reading below ↓

The necessary mods to carry the portal axles included Jürgen sorting out new mounting points and subframes for the multi-link suspension, tweaking the rear axle carrier and then messing with the axle kinematics to stop the whole thing falling over at first sight of a corner.

What’s interesting here is that an engineer from a different department (Jürgen’s actual engineering responsibility at Mercedes is the packaging of the front end of the E-Class—making it all fit, basically), has been given the opportunity to cut a little loose. He looked at the G-Wagen 4x4²’s portal axles, chewed a pencil for a bit and went "hmm, I wonder?"

Apparently, he just asked whether he could have a go, and the Daimler bosses said yes. After a bit more conversation, it turns out that he pitched the idea with actual technical specs and a proper design brief, but Merc simply let a small group of enthusiastic and similarly-minded guys have a crack at it. So a little skunkworks team prototyped some bits, 3D printed some other bits, welded a few custom subframes to Jürgen’s specs and the E-AT² was born. This is good. Some of the best cars ever invented came from groups of engineer’s out-of-hours projects.

Continue reading below ↓


What is it like on the road?

The E-AT² basically feels like a production car. It’s so well-sorted, that if I didn’t know better, I’d be wondering whether Merc was planning a small production run of these things, for fans of the deliberately weird.

Yes, it’s a bit of a struggle to jump up into it—sedans have too-small apertures when you’re getting up into them rather than down—and it’s definitely strange to be levitating so far off the ground in what feels like a standard E-Class, but other than that, it’s brilliant.

The portal axles haven’t got reduction gears (you can change the gear ratios in portal axles to give incredible crawling ability), and are set as 1:1, meaning that the E-AT² performs pretty much like an E400, except taller. The nine-speed auto gearbox runs smoothly and without a hitch, the steering is light and precise, the brakes more than strong enough, and without the snatch you sometimes get with cars with oversized wheels and tires.

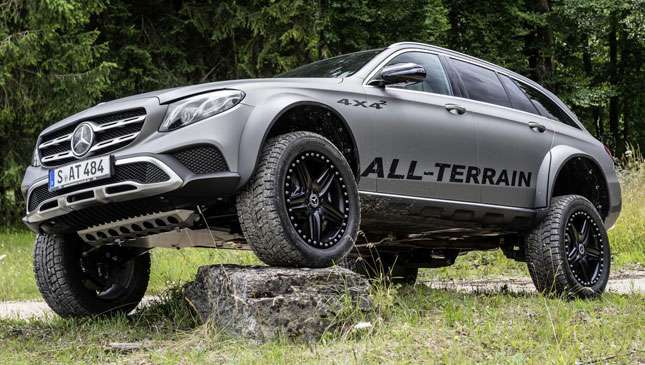

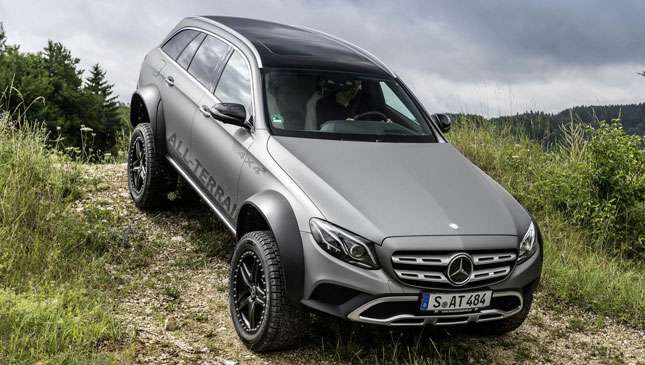

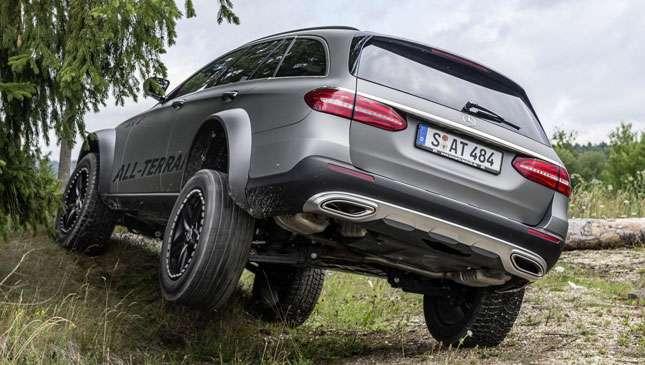

The turning circle is pretty much the same, nothing rubs or grinds, articulation is pretty good. And with the tires and ground clearance, it’s unstoppable off-road. On this car there’s no ABS or lockable differential system, so you have to pick a line and not get cross-axled, but I tried quite hard to get it stuck, and only felt like it would if you got it on a massive lateral ridge the wrong way. Jürgen says that getting a new electronics package would sort all that—it would be relatively simple to give the E-AT² an electronic diff set (redirecting power and checking spinning wheels with ABS) with some decent programming, but it wasn’t cost-appropriate on a prototype.

Continue reading below ↓

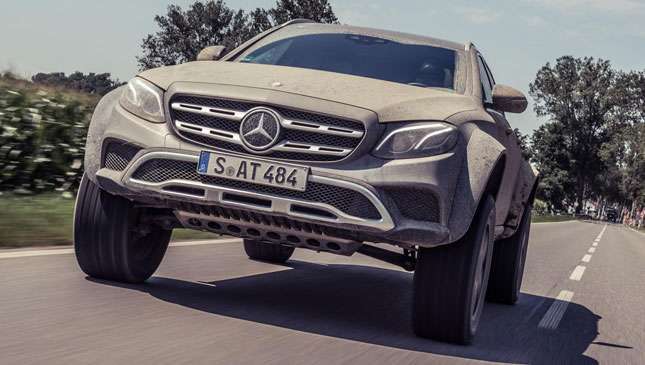

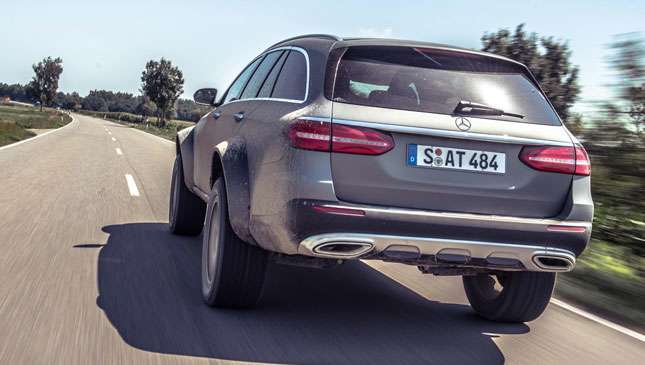

On road, it’s hell to place. Mainly because the extra height means you can’t really see the corners of the car, but also because it’s very wide at 2.10m, and that extra width is all in the arches, so you have to be extremely careful with your spatial awareness. Parking it in the local supermarket was… interesting.

The tires howl a bit at speed, but other than that, again, the car feels spectacularly sorted: It rides, handles and stops pretty much as you’d expect. No, it’s not a sports car, but body control is good, grip is readily available, and there are no wobbles or wayward dynamics. You can tell it’s built by engineers rather than dreamers.

On the inside

Layout, finish and space

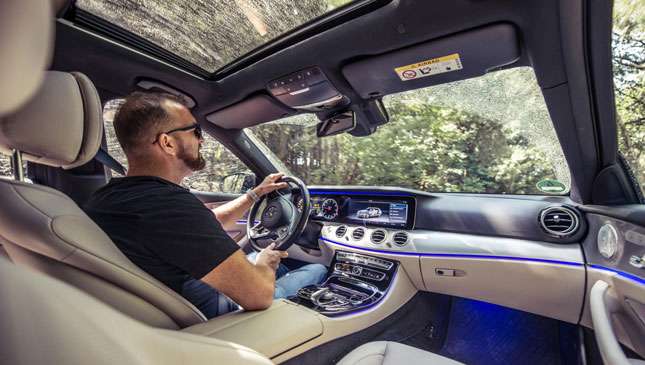

The E-AT² is ‘just’ an E-Class All-Terrain inside. And it all works. So you can choose from the five different settings from the Air Body Control air suspension, pick the ‘All-Terrain’ setting, and simply go. The massaging seats work, the A/C works, and it has satellite navigation. The only strange thing is the fact that it’s a foot higher than you’re used to, but you get used to it.

Continue reading below ↓


Running costs and reliability

I’m going out on a limb and saying that I think Mercedes will probably do a limited run of these. It’s fun, a little silly, but makes sort of sense when you drive it. The only thing it’s lacking is a full suite of electronic helpers, but that’s more of a time pressure thing than a real engineering issue.

It looks a little bit nuts, and as Jürgen points out, it’s an excellent advertisement for Mercedes-Benz in terms of recruitment of engineering talent. After all, who wouldn’t want to work for a company with this level of resource that’s willing to let the odd mad project take flight?

Continue reading below ↓


Final thoughts and pick of the range

It’s fun, it's a little silly, but makes sort of sense when you drive it.

Thoroughly engineered flight-of-fantasy that feels suspiciously like it might be another limited-run bit of fun from Mercedes. There’s nothing wrong with that.
